Imperial Single Row-1

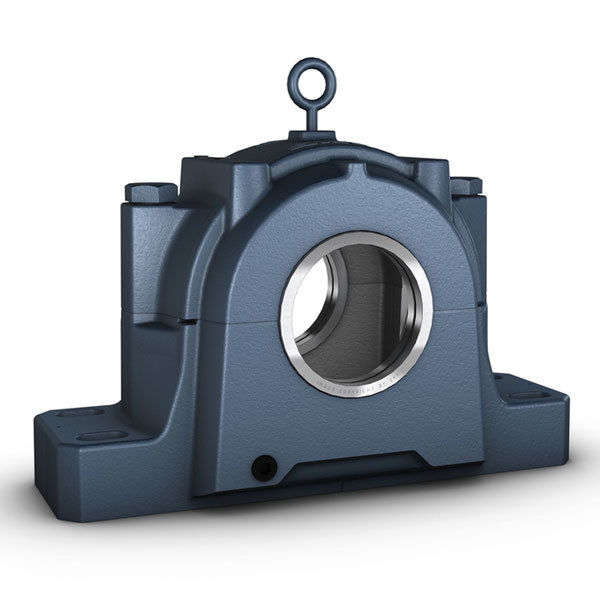

SAF and SAW split pillow (plummer) block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. SAF and SAW housings enable the incorporated bearings to achieve maximum service life with reduced maintenance requirements. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements.

Designation	Shaft diameter	Housing dimensions				Included products
		Width across seals	Height	Centre height	Length	Housing	Bearing
	da[mm]	A2[mm]	H[mm]	H1[mm]	L[mm]
SAF 1616 X 2.3/4 T	69.85	233.363	209.55	107.95	361.95	SAF 616	1316 K
SAF 1616 X 2.3/4 TLC	69.85	160.338	209.55	107.95	361.95	SAF 616	1316 K
SAF 22516 X 2.3/4	69.85	126.603	169.863	88.9	330.2	SAF 516	22216 EK
SAF 22516 X 2.3/4 T	69.85	209.55	169.863	88.9	330.2	SAF 516	22216 EK
SAF 22516 X 2.3/4 TLC	69.85	126.603	169.863	88.9	330.2	SAF 516	22216 EK
SAF 22616 X 2.3/4	69.85	160.338	209.55	107.95	361.95	SAF 616	22316 EK
SAF 22616 X 2.3/4 T	69.85	233.363	209.55	107.95	361.95	SAF 616	22316 EK
SAF 22616 X 2.3/4 TLC	69.85	160.338	209.55	107.95	361.95	SAF 616	22316 EK
SAFS 22516 X 2.3/4	69.85	133.35	174.625	88.9	330.2	SAFS 516	22216 EK
SAFS 22516 X 2.3/4 T	69.85	215.9	174.625	88.9	330.2	SAFS 516	22216 EK
SAFS 22516 X 2.3/4 TLC	69.85	133.35	174.625	88.9	330.2	SAFS 516	22216 EK
SAFS 22516-11 X 2.3/4	69.85	133.35	174.625	88.9	330.2	FSAFS 516	22216 EK
SAFS 22516-11 X 2.3/4 T	69.85	215.9	174.625	88.9	330.2	FSAFS 516	22216 EK
SAFS 22516-11 X 2.3/4 TLC	69.85	133.35	174.625	88.9	330.2	FSAFS 516	22216 EK
SSAFS 22516 X 2.3/4	69.85	133.35	174.625	88.9	330.2	SSAFS 516	22216 EK
SSAFS 22516 X 2.3/4 T	69.85	215.9	174.625	88.9	330.2	SSAFS 516	22216 EK
SSAFS 22516 X 2.3/4 TLC	69.85	133.35	174.625	88.9	330.2	SSAFS 516	22216 EK
FSAF 1517 X 2.13/16	71.438	127	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1517 X 2.13/16 T	71.438	198.438	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1517 X 2.13/16 TLC	71.438	127	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1617 X 2.13/16	71.438	171.45	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 1617 X 2.13/16 T	71.438	231.775	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 1617 X 2.13/16 TLC	71.438	171.45	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 22517 X 2.13/16	71.438	127	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22517 X 2.13/16 T	71.438	198.438	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22517 X 2.13/16 TLC	71.438	127	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22617 X 2.13/16	71.438	173.038	222.25	114.3	387.35	FSAF 617	22317 EK
FSAF 22617 X 2.13/16 T	71.438	231.775	222.25	114.3	387.35	FSAF 617	22317 EK
FSAF 22617 X 2.13/16 TLC	71.438	173.038	222.25	114.3	387.35	FSAF 617	22317 EK
SAF 1517 X 2.13/16	71.438	127	180.975	95.25	330.2	SAF 517	1217 K
SAF 1517 X 2.13/16 T	71.438	198.438	180.975	95.25	330.2	SAF 517	1217 K
SAF 1517 X 2.13/16 TLC	71.438	127	180.975	95.25	330.2	SAF 517	1217 K
SAF 1617 X 2.13/16	71.438	173.038	222.25	114.3	387.35	SAF 617	1317 K
SAF 1617 X 2.13/16 T	71.438	231.775	222.25	114.3	387.35	SAF 617	1317 K
SAF 1617 X 2.13/16 TLC	71.438	173.038	222.25	114.3	387.35	SAF 617	1317 K
SAF 22517 X 2.13/16	71.438	127	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22517 X 2.13/16 T	71.438	198.438	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22517 X 2.13/16 TLC	71.438	127	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22617 X 2.13/16	71.438	173.038	222.25	114.3	387.35	SAF 617	22317 EK
SAF 22617 X 2.13/16 T	71.438	231.775	222.25	114.3	387.35	SAF 617	22317 EK
SAF 22617 X 2.13/16 TLC	71.438	173.038	222.25	114.3	387.35	SAF 617	22317 EK
SAFS 22517 X 2.13/16	71.438	127	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517 X 2.13/16 T	71.438	195.263	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517 X 2.13/16 TLC	71.438	127	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517-11 X 2.13/16	71.438	127	187.325	95.25	330.2	FSAFS 517	22217 EK
SAFS 22517-11 X 2.13/16 T	71.438	195.263	187.325	95.25	330.2	FSAFS 517	22217 EK
SAFS 22517-11 X 2.13/16 TLC	71.438	127	187.325	95.25	330.2	FSAFS 517	22217 EK
SSAFS 22517 X 2.13/16	71.438	127	187.325	95.25	330.2	SSAFS 517	22217 EK
SSAFS 22517 X 2.13/16 T	71.438	195.275	187.325	95.25	330.2	SSAFS 517	22217 EK
SSAFS 22517 X 2.13/16 TLC	71.438	127	187.325	95.25	330.2	SSAFS 517	22217 EK
FSAF 1517 X 2.7/8	73.025	127	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1517 X 2.7/8 T	73.025	198.438	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1517 X 2.7/8 TLC	73.025	127	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1617 X 2.7/8	73.025	171.45	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 1617 X 2.7/8 T	73.025	231.775	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 1617 X 2.7/8 TLC	73.025	171.45	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 22517 X 2.7/8	73.025	127	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22517 X 2.7/8 T	73.025	198.438	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22517 X 2.7/8 TLC	73.025	127	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22617 X 2.7/8	73.025	173.038	222.25	114.3	387.35	FSAF 617	22317 EK
FSAF 22617 X 2.7/8 T	73.025	231.775	222.25	114.3	387.35	FSAF 617	22317 EK
FSAF 22617 X 2.7/8 TLC	73.025	173.038	222.25	114.3	387.35	FSAF 617	22317 EK
SAF 1517 X 2.7/8	73.025	127	180.975	95.25	330.2	SAF 517	1217 K
SAF 1517 X 2.7/8 T	73.025	198.438	180.975	95.25	330.2	SAF 517	1217 K
SAF 1517 X 2.7/8 TLC	73.025	127	180.975	95.25	330.2	SAF 517	1217 K
SAF 1617 X 2.7/8	73.025	173.038	222.25	114.3	387.35	SAF 617	1317 K
SAF 1617 X 2.7/8 T	73.025	231.775	222.25	114.3	387.35	SAF 617	1317 K
SAF 1617 X 2.7/8 TLC	73.025	173.038	222.25	114.3	387.35	SAF 617	1317 K
SAF 22517 X 2.7/8	73.025	127	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22517 X 2.7/8 T	73.025	198.438	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22517 X 2.7/8 TLC	73.025	127	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22617 X 2.7/8	73.025	173.038	222.25	114.3	387.35	SAF 617	22317 EK
SAF 22617 X 2.7/8 T	73.025	231.775	222.25	114.3	387.35	SAF 617	22317 EK
SAF 22617 X 2.7/8 TLC	73.025	173.038	222.25	114.3	387.35	SAF 617	22317 EK
SAFS 22517 X 2.7/8	73.025	127	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517 X 2.7/8 T	73.025	195.263	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517 X 2.7/8 TLC	73.025	127	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517-11 X 2.7/8	73.025	127	187.325	95.25	330.2	FSAFS 517	22217 EK
SAFS 22517-11 X 2.7/8 T	73.025	195.263	187.325	95.25	330.2	FSAFS 517	22217 EK
SAFS 22517-11 X 2.7/8 TLC	73.025	127	187.325	95.25	330.2	FSAFS 517	22217 EK
SSAFS 22517 X 2.7/8	73.025	127	187.325	95.25	330.2	SSAFS 517	22217 EK
SSAFS 22517 X 2.7/8 T	73.025	195.275	187.325	95.25	330.2	SSAFS 517	22217 EK
SSAFS 22517 X 2.7/8 TLC	73.025	127	187.325	95.25	330.2	SSAFS 517	22217 EK
FSAF 1517	74.613	127	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1517 T	74.613	198.438	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1517 TLC	74.613	127	182.166	95.25	330.2	FSAF 517	1217 K
FSAF 1617	74.613	171.45	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 1617 T	74.613	231.775	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 1617 TLC	74.613	171.45	222.25	114.3	387.35	FSAF 617	1317 K
FSAF 22517	74.613	127	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22517 T	74.613	198.438	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22517 TLC	74.613	127	182.166	95.25	330.2	FSAF 517	22217 EK
FSAF 22617	74.613	173.038	222.25	114.3	387.35	FSAF 617	22317 EK
FSAF 22617 T	74.613	231.775	222.25	114.3	387.35	FSAF 617	22317 EK
FSAF 22617 TLC	74.613	173.038	222.25	114.3	387.35	FSAF 617	22317 EK
SAF 1517	74.613	127	180.975	95.25	330.2	SAF 517	1217 K
SAF 1517 T	74.613	198.438	180.975	95.25	330.2	SAF 517	1217 K
SAF 1517 TLC	74.613	127	180.975	95.25	330.2	SAF 517	1217 K
SAF 1617	74.613	173.038	222.25	114.3	387.35	SAF 617	1317 K
SAF 1617 T	74.613	231.775	222.25	114.3	387.35	SAF 617	1317 K
SAF 1617 TLC	74.613	173.038	222.25	114.3	387.35	SAF 617	1317 K
SAF 22517	74.613	127	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22517 TLC	74.613	127	180.975	95.25	330.2	SAF 517	22217 EK
SAF 22617	74.613	173.038	222.25	114.3	387.35	SAF 617	22317 EK
SAF 22617 T	74.613	231.775	222.25	114.3	387.35	SAF 617	22317 EK
SAF 22617 TLC	74.613	173.038	222.25	114.3	387.35	SAF 617	22317 EK
SAFS 22517	74.613	127	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517 T	74.613	195.263	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517 TLC	74.613	127	187.325	95.25	330.2	SAFS 517	22217 EK
SAFS 22517-11	74.613	127	187.325	95.25	330.2	FSAFS 517	22217 EK
SAFS 22517-11 T	74.613	195.263	187.325	95.25	330.2	FSAFS 517	22217 EK
SAFS 22517-11 TLC	74.613	127	187.325	95.25	330.2	FSAFS 517	22217 EK
SSAFS 22517	74.613	127	187.325	95.25	330.2	SSAFS 517	22217 EK
SSAFS 22517 T	74.613	195.275	187.325	95.25	330.2	SSAFS 517	22217 EK
SSAFS 22517 TLC	74.613	127	187.325	95.25	330.2	SSAFS 517	22217 EK
FSAF 1517 X 3	76.2	127	182.166	95.25	330.2	FSAF 517	1217 K
