Imperial Single Row-1

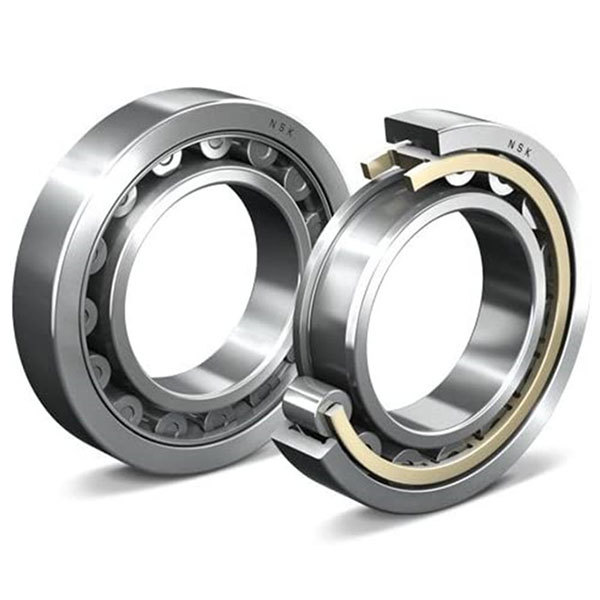

The outer ring of an N type single row cylindrical bearing has no ribs, whereas the inner ring of the cylindrical bearing has two fixed ribs. This means that the N cylindrical bearing cannot locate the shaft, therefore the axial displacement of the shaft relative to the casing can be accommodated in both directions.

Bearing Number	d mm	D mm	B mm
N205	25	52	15
N206	30	62	16
N207	35	72	17
N208	40	80	18
N209	45	85	19
N210	50	90	20
N211	55	100	21
N212	60	110	22
N213	65	120	23
N214	70	125	24
N215	75	130	25
N216	80	140	26
N217	85	150	28
N218	90	160	30
N219	95	170	32
N220	100	180	34
N221	105	190	36
N222	110	200	38
N224	120	215	40
N226	130	230	40
N305	25	62	17
N306	30	72	19
N307	35	80	21
N308	40	90	23
N309	45	100	25
N310	50	110	27
N311	55	120	29
N312	60	130	31
N313	65	140	33
N314	70	150	35
N315	75	160	37
N316	80	170	39
N317	85	180	41
N318	90	190	43
N319	95	200	45
N320	100	215	47
N321	105	225	49
N322	110	240	50
N324	120	260	55
N326	130	280	58
